Key takeaways
- Coil building means winding your own coil for a rebuildable atomizer (an RDA, RTA or RBA) instead of buying pre-made coil heads — for better flavor, lower running costs, and full control.
- Safety comes first. Building means you set the resistance, so you must understand Ohm’s law and your battery’s limits. Always check every build on an ohm reader before firing, and build on a regulated mod while you learn — its safety chip catches a bad build.
- The core kit: resistance wire (start with 26-gauge Kanthal), a coil jig or small screwdriver, ceramic and fine-tip tweezers, flush cutters, an ohm reader, and proper vape cotton (never household/drugstore cotton).
- The process: wrap the coil → mount it on the deck → check the resistance → pulse and strum to remove hot spots → wick with cotton → prime and vape. About 10–15 minutes once you’ve practiced.
- Resistance is set by your wire and wraps: thicker wire and fewer wraps = lower resistance; thinner wire and more wraps = higher. Dial it into a range your battery and mod handle safely.
Building your own coils is the rite of passage into serious vaping — the point where you stop buying disposable coil heads and start hand-winding your own for the best flavor and clouds a setup can give. It’s genuinely satisfying and cheaper over time, but it comes with real responsibility: you are now in charge of the resistance, which means you’re in charge of battery safety. This guide walks you through it properly — safely first, then step by step.
First: is coil building for you (and the safety reality)?
Coil building is for rebuildable atomizers — RDAs, RTAs and RBAs — not for pods or stock tanks (those use pre-made coil heads you just swap). It’s an enthusiast skill, and before you wind a single coil you need to be straight on the safety side:
- You set the resistance, so you must know Ohm’s law. The coil’s resistance, your battery’s voltage, and the current it draws are linked. Build too low and you can pull more current than your battery can safely deliver.
- Know your battery’s limit. Every cell has a continuous discharge rating (CDR) — the maximum current it can safely give. Your build must stay within it. This is the same physics behind why vapes can vent or explode when a battery is over-stressed.
- Build on a regulated mod while you learn. A regulated mod reads your coil’s resistance and refuses to fire a dangerous short — a huge safety net. Building straight onto a mechanical mod leaves nothing to catch a mistake; that’s for experienced builders only.
- Always check every build on an ohm reader (or your mod’s resistance readout) before you fire it.
None of this is meant to scare you off — millions build coils safely. It’s just the honest price of admission, and it makes the whole thing safe and enjoyable rather than risky.
Tools and materials you’ll need
A basic coil-building kit is inexpensive and lasts for ages:
- Resistance wire — the wire you wind into a coil. Start with 26-gauge (0.4 mm) Kanthal A1 — it’s cheap, forgiving, holds its shape, and works in plain wattage mode. (More on wire below.)
- A coil jig or a small screwdriver — the rod you wrap the wire around. A coil jig gives consistent, tidy coils with almost no effort; a screwdriver of the right diameter (commonly 2.5–3 mm) works fine to start.
- Ceramic tweezers — for strumming and adjusting the coil while it’s hot (ceramic doesn’t conduct, so it won’t short the coil against the deck).
- Fine-tip tweezers and flush cutters — for positioning and trimming the coil legs cleanly.
- A small screwdriver — to tighten the terminal screws on the build deck.
- An ohm reader — a dedicated resistance meter (or your regulated mod’s readout) to check the build. Non-negotiable.
- Vape cotton — for wicking. Use proper vaping cotton (organic, unbleached), never cotton wool or cotton buds from the bathroom — household cotton can contain bleach and additives that are unsafe to heat and inhale.
What’s the best wire for beginners?
Wire comes in different materials and thicknesses (gauges), but keep it simple to start:
- Material: Kanthal A1. It’s the classic beginner wire — durable, holds its shape, and runs in normal wattage mode (no temperature control needed). Nichrome (Ni80) heats faster but is less forgiving; save nickel, titanium and stainless steel for temperature control builds later.
- Gauge: 26 g (0.4 mm) is the sweet spot for learning — thick enough to hold shape, thin enough to wrap easily, and it lands in a sensible resistance range for most single-coil builds.
Once you’re confident, you can explore thinner/thicker gauges, twisted wire, and exotic “Clapton” and “alien” builds for more surface area and flavor — but master a simple round-wire coil first.
How to build a coil, step by step
Set aside 10–15 minutes and work slowly the first few times.
- Cut your wire. Cut a length of around 4–6 inches — longer than you need, which makes wrapping and adjusting easier for beginners.

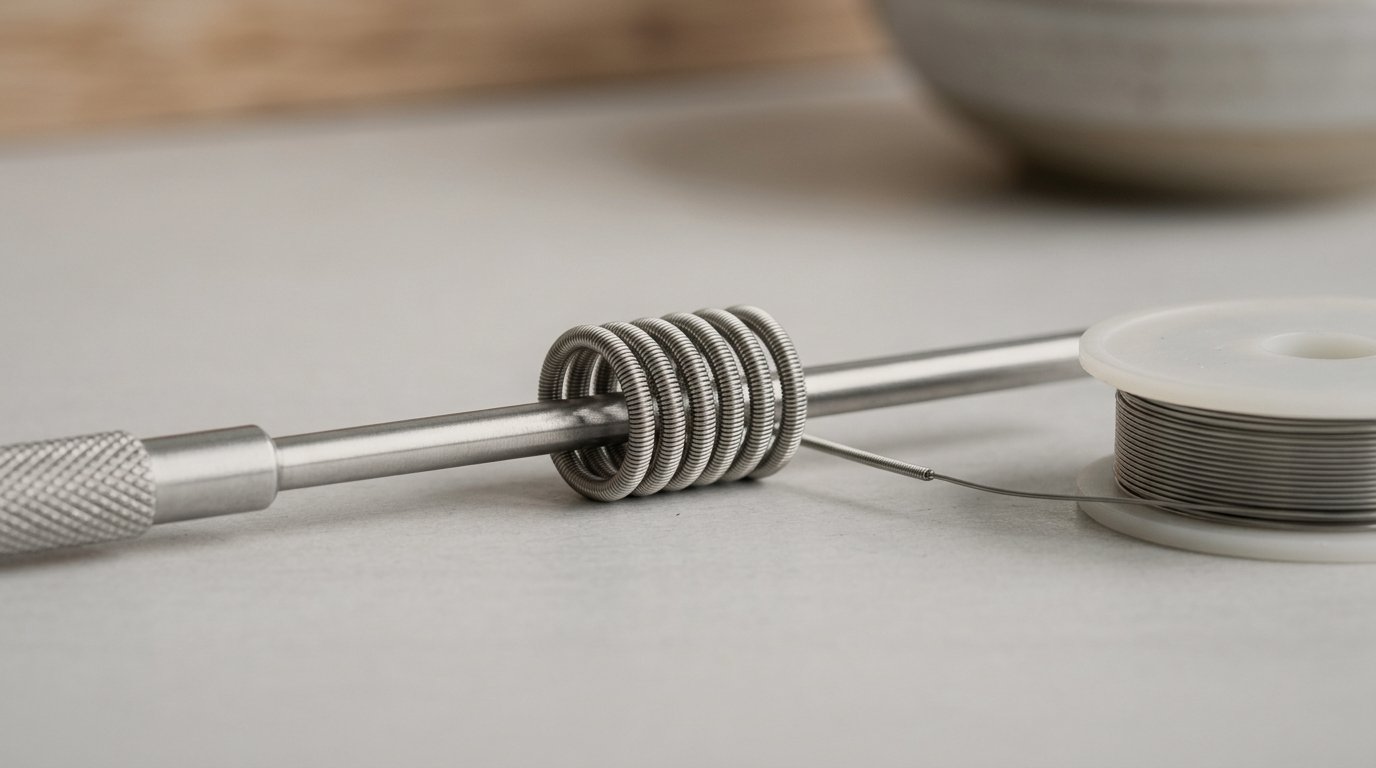

- Wrap the coil. Hold your jig or screwdriver and wind the wire around it under firm, constant tension, keeping each wrap snug against the last with no gaps or overlaps. Five to seven wraps is a typical starting point. Leave a straight “leg” of wire at each end.
- Mount it on the deck. Fit the coil’s legs into the atomizer’s terminal posts, position the coil centered over the airflow, and tighten the screws firmly so the legs are held solid. Snip the excess leg flush with flush cutters.
- Check the resistance — before firing. Put the atomizer on your ohm reader (or regulated mod) and read the resistance. Make sure it’s a value your battery and mod handle safely (see the resistance section below). If it reads much lower than expected or shows a short, re-seat the coil and re-check — do not fire a short.

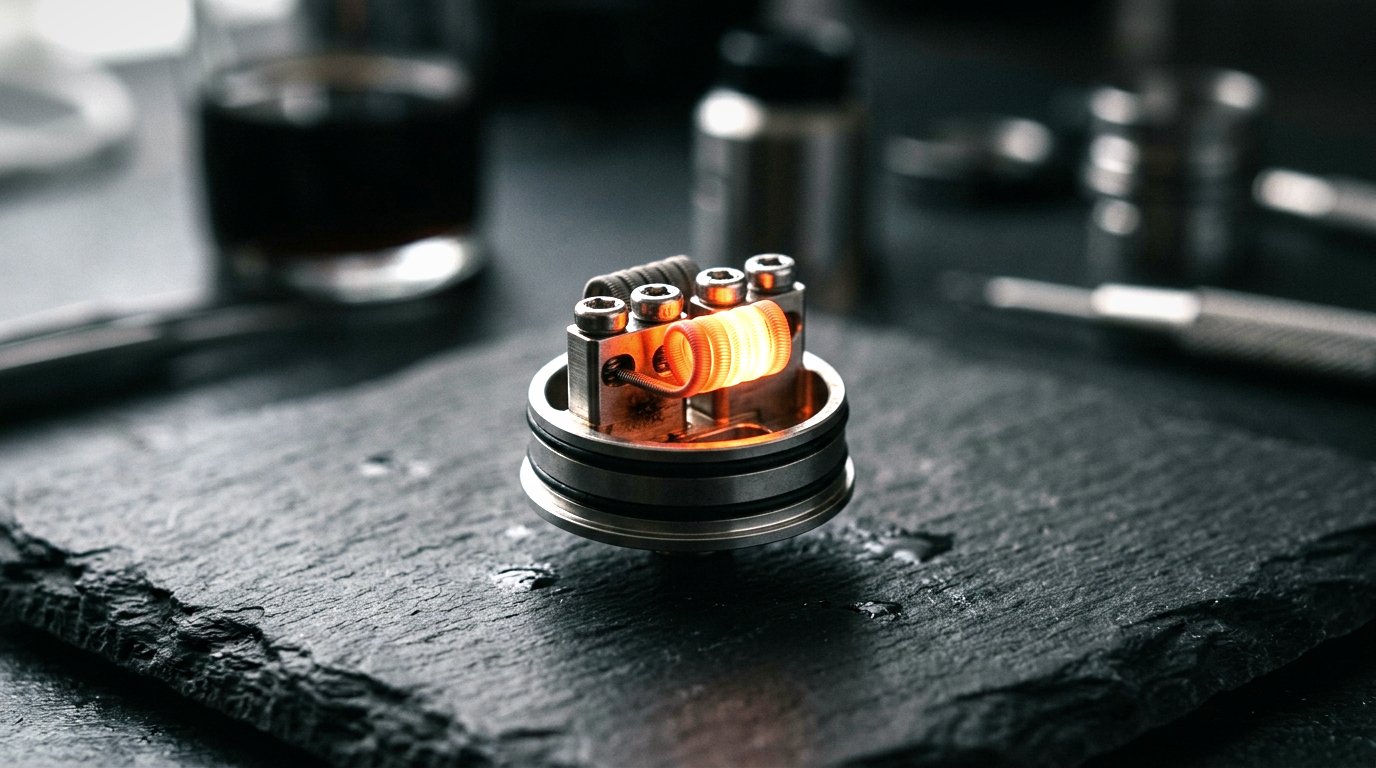

- Remove hot spots. Fire the coil in short pulses at low power. It should glow evenly from the center outwards. If parts glow first (hot spots), stop, and while it’s warm gently strum and squeeze the coil with your ceramic tweezers to even out the wraps, then pulse again until the whole coil glows uniformly.

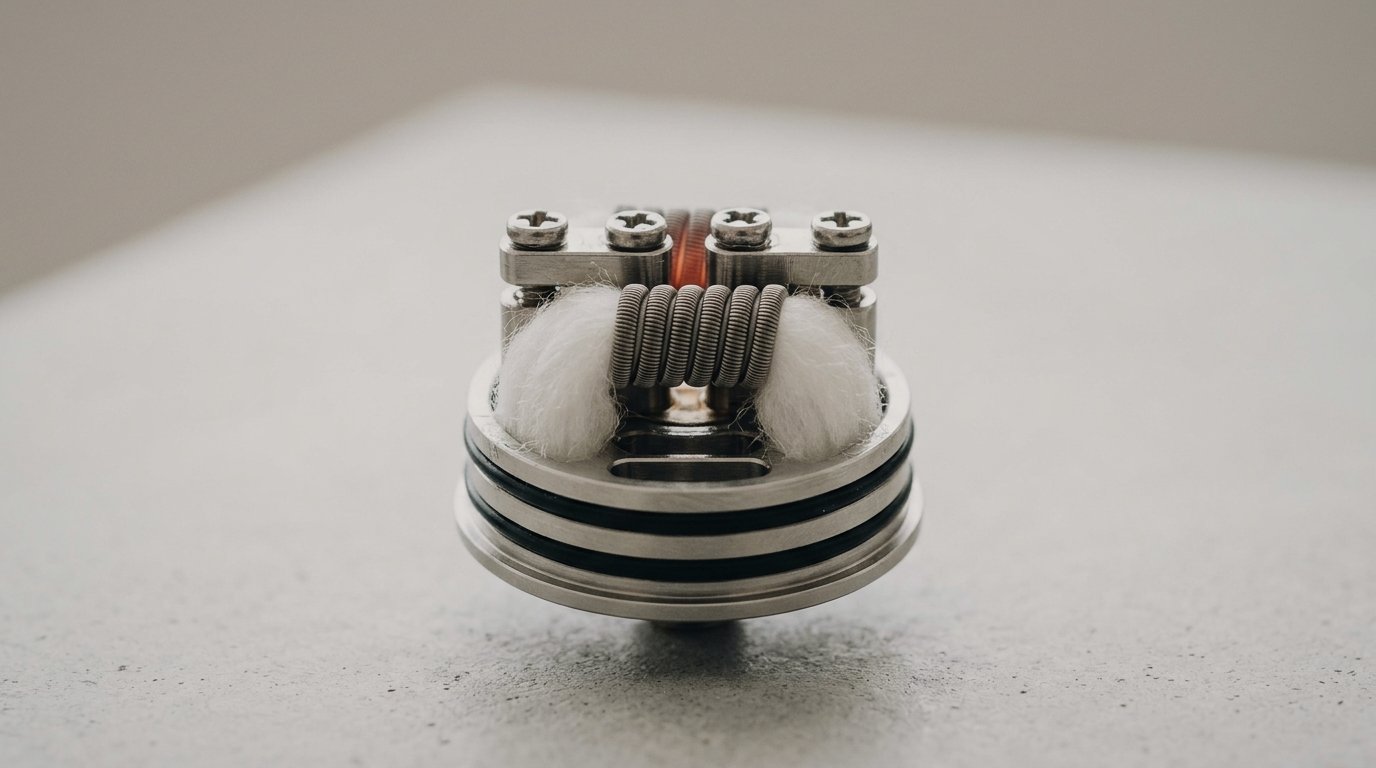

- Wick it. Let the coil cool completely. Roll a piece of vape cotton to a point, feed it through the coil with a gentle twist — it should pass through with slight resistance, not tight. If you have to force it, use less cotton; if it slides loose, use more. Trim the tails and tuck them into the deck’s wicking channels or wells.
- Prime and vape. Drip a few drops of e-liquid directly onto the cotton and coil until saturated, reassemble, fill (for an RTA), and start at a low wattage, working up to your coil’s sweet spot. Let it wick between the first few puffs so you never dry-hit a fresh coil.
Understanding resistance and wraps (how to hit your target)
The single concept that makes coil building “click”: your resistance is set by the wire and the number of wraps.
- Thicker wire (lower gauge number) = lower resistance. More wraps = higher resistance.
- Thinner wire (higher gauge number) = higher resistance. Fewer wraps = lower resistance.
- A bigger coil diameter (wider jig) slightly lowers resistance too.
So if a build comes out lower than you want, add a wrap or two (or use thinner wire); higher than you want, remove a wrap. Coil-building calculators and apps will tell you the wraps needed for a target resistance with a given wire and diameter — handy while you learn. Whatever you land on, confirm it on the ohm reader and check it’s safe for your battery (Ohm’s law refresher).
A quick word on coil types
Once the basics are solid, the coil world opens up:
- Single vs dual coils — one coil (simpler, more efficient, great flavor) or two (more vapor and warmth, higher current draw — mind your battery). RDAs often run dual; many flavor-focused RTAs run single.
- Micro vs macro — smaller vs larger inner diameter, affecting ramp-up and vapor.
- Exotic coils — twisted, Clapton, fused Clapton, alien and more, built for extra surface area and flavor. These are advanced; nail a clean round-wire coil first.
Different atomizers build a little differently — an RDA vs an RTA vs an RBA each have their own deck and wicking quirks — but the core coil-winding skill is identical across all of them.
My Experience: I still build my own coils — but you probably shouldn’t
I’ve built the full range over the years — simple round-wire coils for MTL vaping in boro tanks, right up to exotic Claptons for low-ohm clouds. And there’s something deeply satisfying about it: you take a plain spool of wire, work out exactly how many wraps you need for the resistance you’re after, position everything just so, and build the whole thing yourself. That first crackle when you fire a coil you wound with your own hands never gets old.
Building isn’t as hard as people fear — a simple round-wire coil for temperature control was my old go-to — but for most people, even on an RDA or RTA, you’re genuinely better off buying pre-made coils. Fit them, wick them properly, and you’re vaping — no maths, no coil jigs. And with everything shifting to mesh, a manufacturer’s mesh coil just gives a better vape than most of us can build. I’ve tried building my own mesh exactly once. Total disaster — hot spots everywhere. So if you want the best experience for the least effort, pre-made or mesh is the honest answer.
And yet. There’s something almost therapeutic about building your own, and a part of me still believes you’re not truly a seasoned vaper until you’ve tried it at least once. It’s a craft I get nostalgic for — so every six months or so, I still end up with a table full of wire and coiling rods, building one just for the love of it.
Troubleshooting: hot spots, shorts and bad builds
- Hot spots (uneven glow). The most common issue — strum the warm coil with ceramic tweezers and pulse until it glows evenly. Usually caused by loose or uneven wraps, or the legs not clamped tight.
- A “short” reading or the mod won’t fire. A coil leg or the coil itself is touching the deck where it shouldn’t, or a leg is grounding out. Re-seat the coil, make sure legs aren’t touching the wrong post or the cap, and re-check the resistance.
- Burnt or dry hits. Too little e-liquid, cotton packed too tight (restricting wicking), or wattage too high for the coil — re-wick looser, prime properly, and drop the power.
- Muted or weak flavor. Coil too far from the airflow, too few wraps, or cotton too loose — reposition and adjust.
- Spitting or gurgling. Usually over-wicked or too much juice — use a touch more cotton or take gentler pulls.
Keep everything clean, too — residue builds up on coils and decks over time (how to clean coils and tanks).
FAQ
What is coil building?
Winding your own heating coil from resistance wire for a rebuildable atomizer (RDA, RTA or RBA), instead of buying pre-made coil heads. Builders do it for better flavor, lower running costs, and full control over their vape.
Is coil building safe?
It’s safe when done correctly — but because you set the resistance, you must understand Ohm’s law and your battery’s limits, always check each build on an ohm reader before firing, and ideally build on a regulated mod that refuses to fire a dangerous short. Done carelessly, a bad build can over-stress a battery.
What wire should a beginner use for coil building?
26-gauge (0.4 mm) Kanthal A1 — it’s cheap, durable, holds its shape, works in normal wattage mode, and lands in a sensible resistance range for a first single-coil build.
What tools do I need to build coils?
Resistance wire, a coil jig or small screwdriver, ceramic tweezers, fine-tip tweezers, flush cutters, an ohm reader, and proper vape cotton (organic and unbleached — never household cotton).
How many wraps should my coil have?
It depends on the wire and your target resistance, but 5–7 wraps of 26-gauge Kanthal is a common starting point. More wraps raise the resistance, fewer lower it — always confirm the final value on an ohm reader.
Why is my coil glowing unevenly?
Those are hot spots, usually from loose or uneven wraps or legs that aren’t clamped tight. Pulse the coil at low power and strum it with ceramic tweezers while warm until it glows evenly from the center out.
Can I build coils on any vape?
Only on rebuildable atomizers (RDAs, RTAs, RBAs) paired with a mod. Pod systems and stock tanks use pre-made coil heads and can’t be rebuilt.
